ELOG-G200

Real-Time Visibility for Ultra-Low Temperature Shipments

• ELOG-G200 is a reusable 4G IoT data logger equipped with an external PT100 probe for real-time monitoring of dry ice, cryogenic and ultra-low temperature shipments from -200°C to +70°C.

• The device combines temperature and ambient humidity data with location, light and tilt/vibration information, helping logistics and quality teams understand both the condition and movement of sensitive cargo throughout transportation.

Key Features：

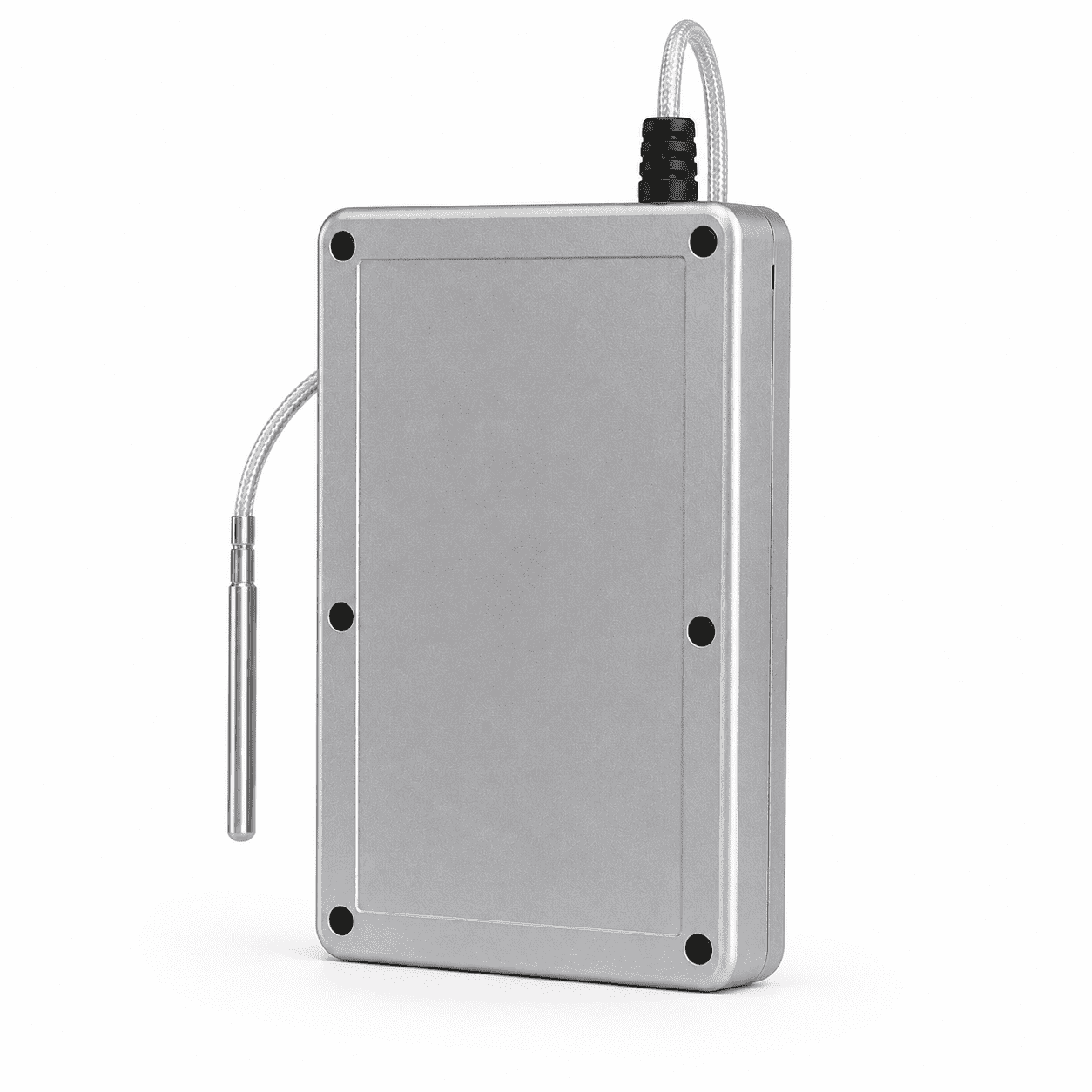

External PT100 Probe Down to -200°C

• The external PT100 probe monitors ultra-low temperature environments while the main device remains accessible for communication, display and operation.

4G Real-Time Monitoring

• Temperature, humidity, location, route and alarm information are transmitted to the cloud platform, allowing authorized users to review shipment conditions remotely.

Real-Time Email and SMS Alerts

• When temperature exceeds a configured limit, the cloud platform can send email or SMS notifications to designated personnel, supporting faster investigation and corrective action.

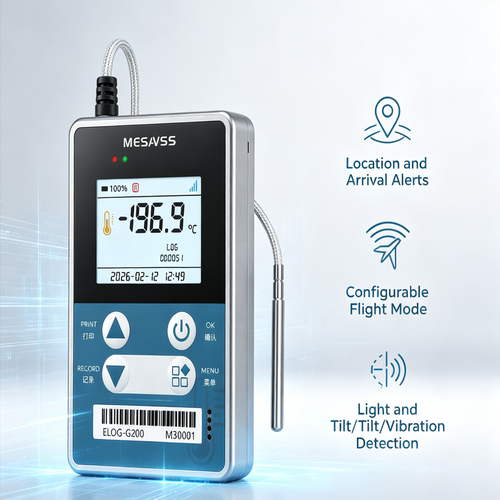

Location and Arrival Alerts

• Track the current location and route of the shipment. The platform can notify selected recipients when the device reaches a preset location, helping teams prepare for receipt, transfer or inspection.

Configurable Flight Mode

• ELOG-G200 supports manual flight mode as well as configurable location-based flight mode. Data transmission is suspended while flight mode is active, while temperature data continues to be recorded locally for upload after flight mode is exited.

Light and Tilt/Vibration Detection

• Light and movement-related data provide additional context for shipment investigations, helping teams identify handling events, package opening or unusual cargo movement.

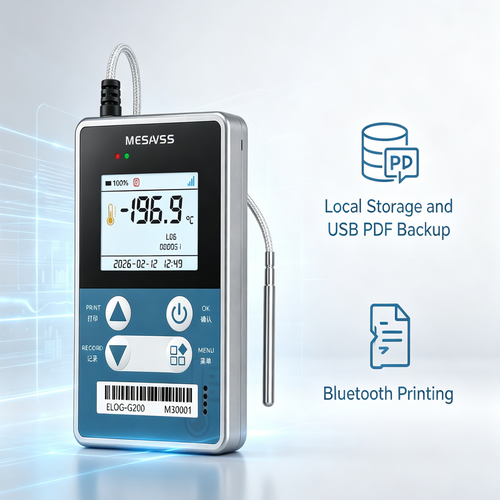

Local Storage and USB PDF Backup

• The device stores up to 24,000 data points locally. After recording stops, connect it to a computer USB port to generate a PDF report automatically, providing an independent record in addition to cloud data.

Bluetooth Printing

• Send monitoring data to a compatible Bluetooth printer for fast on-site printing when a physical record is required.

One Device, Multiple Levels of Visibility：

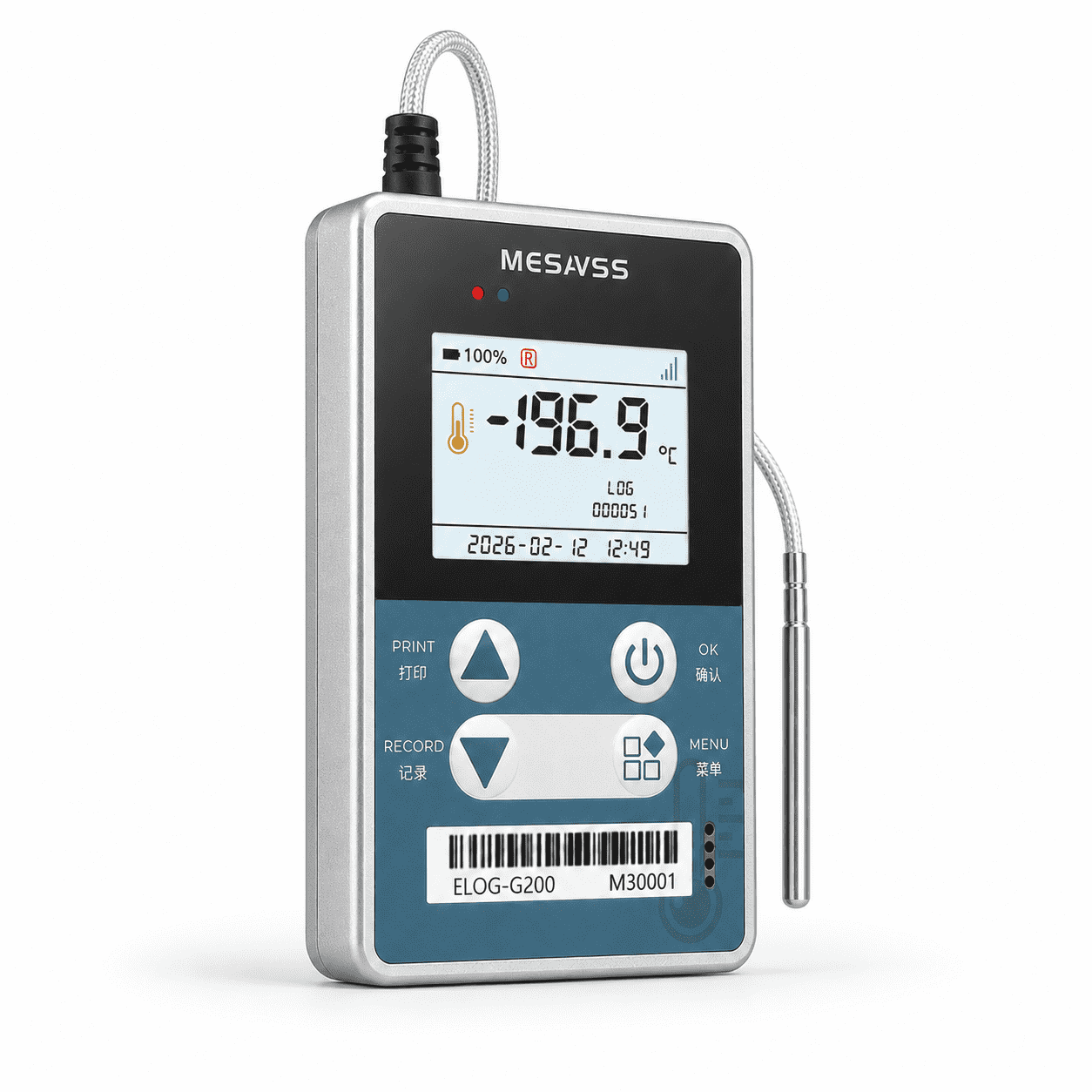

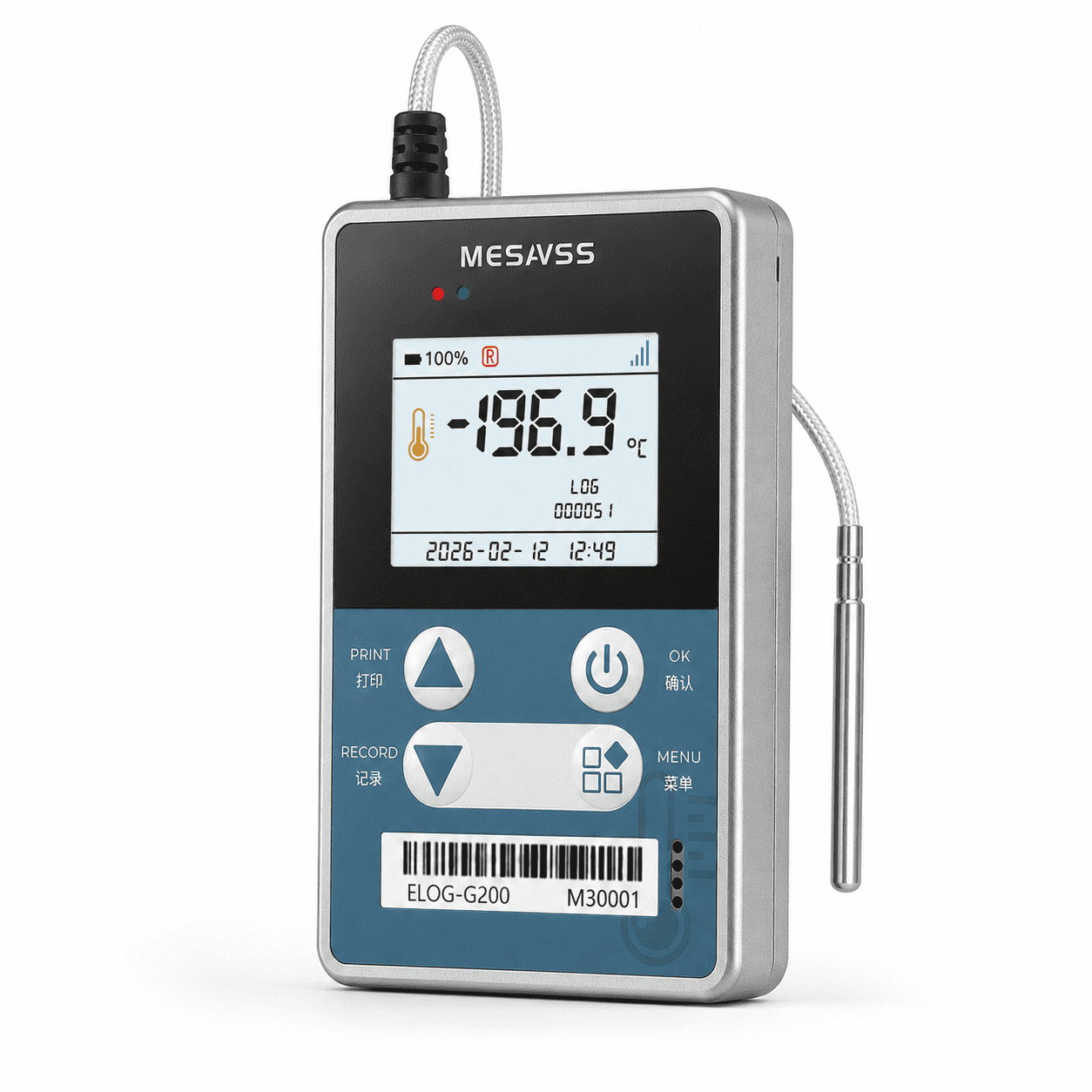

TFT LCD Display

• Current temperature.

• Recording status.

• Battery level.

• Signal or flight-mode status.

• Number of recorded readings.

• Current date and time.

• Maximum and minimum temperature.

• Alarm limits and alarm statistics.

• Logging and reporting intervals.

Cloud Platform:

• Real-time temperature and humidity.

• Current location and shipment route.

• High- and low-temperature alarms.

• Location and arrival notifications.

• Device configuration and sharing.

• Waybill and shipment information.

• Report review and export.

USB PDF Report

• Complete recorded temperature history.

• Maximum and minimum temperature.

• Alarm and excursion information.

• Start and stop information.

• Logging and reporting intervals.

• Device identification and configuration.

How It Works:

• Add the device to the cloud platform.

• Configure alarm limits, reporting intervals, recipients and shipment information.

• Position the PT100 probe inside the ultra-low temperature environment.

• Keep the main logger within its specified operating conditions.

• Start recording and confirm the recording status on the TFT display.

• Monitor temperature, location, route and alarms through the cloud platform.

• Use flight mode when required for air transportation.

• Stop recording at destination and export the cloud report or USB PDF.

Applications:

• Dry ice pharmaceutical shipments.

• Cryogenic and ultra-low temperature transportation.

• Vaccines and biological products.

• Clinical trial materials.

• Cell, tissue and biological sample logistics.

• Ultra-low temperature freezers and containers.

• Air, road and multimodal cold chain transportation.

ELOG-G200 or CLOG-90?

• Choose ELOG-G200 when you need real-time temperature, location and shipment-condition visibility during transportation. Its external PT100 probe supports ultra-low temperature monitoring while the 4G main unit transmits data to the cloud platform.

• Choose CLOG-90 when you need a compact, single-use offline logger placed directly inside dry ice packaging, with temperature results reviewed on the LCD and through a USB PDF report after delivery.
